A Versatile Sensing Solution for the Most Challenging Environments

Emerson’s TopWorx™ GO™ Switch is an extremely versatile sensing solution designed for the most challenging environments and applications. It detects like a proximity switch and functions like a limit switch, providing higher reliability when conventional switches fail. GO Switch provides reliable, durable proximity sensing in the most demanding conditions, and its innovative, unique design provides simplified, maintenance-free high performance.

営業担当へのお問い合わせ
パンフレットを見る

Keep your emissions under control with TopWorx GO Switch

TopWorx GO Switch Thief Hatch Monitoring System provides reliable proximity sensing technology you can rely on.
フライヤーを見る

How Challenging is Your Environment?


Hazardous Environments

The TopWorx GO Switch is designed to function where high temperature, pressure, radioactivity and potential for combustion are constant challenges. In addition to high temperature +204 °C (+400 °F), cold temperature -50 °C (-58 °F), and sub-sea 7,010 m (23,000 ft) applications, these products are suitable for use in Flameproof/Explosion Proof, Non-Incendive, Intrinsically Safe hazardous areas with both global and regional certifications available.

A Versatile Combination of Proximity Switch and Limit Switch

The TopWorx GO Switch uses magnets to detect a ferrous metal or magnetic target, and like other proximity switches has no exposed, moving parts. Like a limit switch, it provides highly precise readings and is suitable for a wide variety of industrial applications. By combining these features, the GO Switch requires far less maintenance than traditional limit switches and performs within ruggedized and harsh environments that often prohibit the use of other technologies such as inductive or capacitive sensors.

営業担当へのお問い合わせ

Choose your design

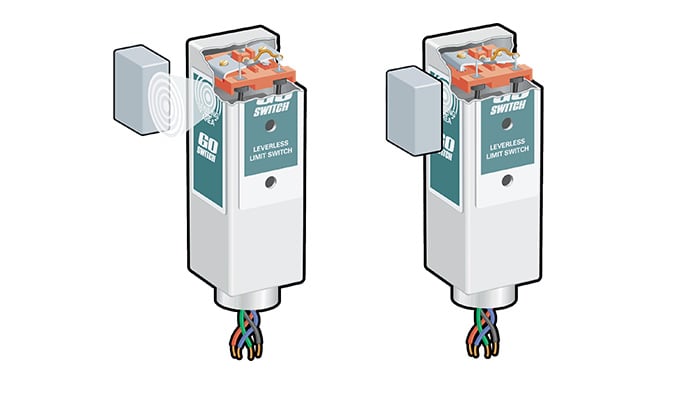

TopWorx GO スイッチのスクエアモデルは、従来の機械式リミットスイッチの理想的な代替品です。 この製品は通常、精度要求が低く、サイドセンシングとエンドセンシングの変動が少ない拡張センシング用途に使用されます。 2 つの内部磁石のうち、優勢な磁石が封入接点を支持する電機子の位置に影響を与えます。 鉄や磁性体のターゲットが検出エリアに入ると、磁束が変化して一方の磁石がより優勢となり、その結果、アーマチュアが接点を閉じて信号が出力されます。

Related Products

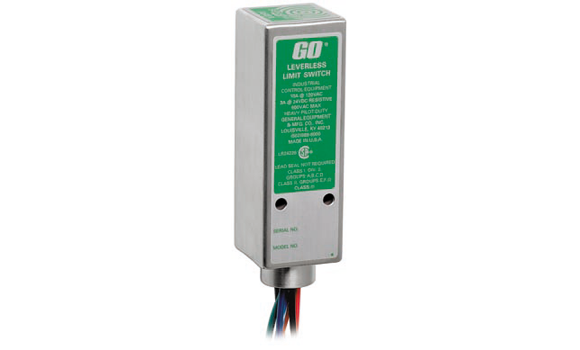

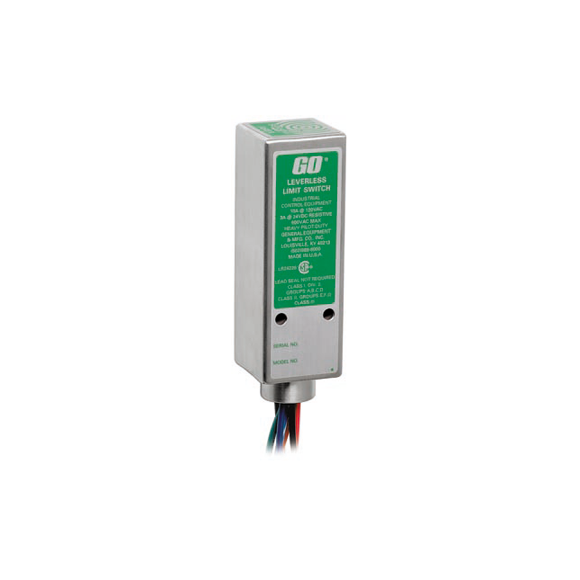

TopWorx™ GO™ スイッチモデル 21

GO™ スイッチモデル 11 と同機能を提供しますが、モデル 21 GO™ スイッチはさらに小型設計となっています。すべての GO™ スイッチオプションには、A/C、D/C、N/O または N/C が含まれ、作動消費電力はなく、電流漏れや電圧降下がありません。

詳細を見る

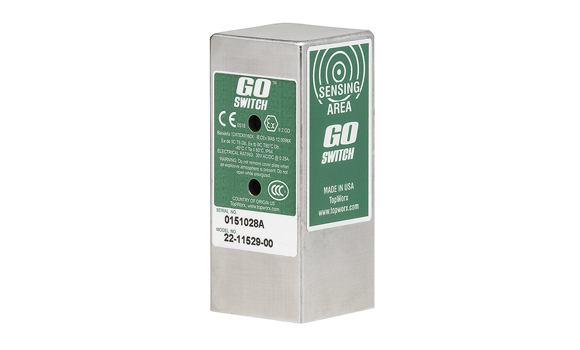

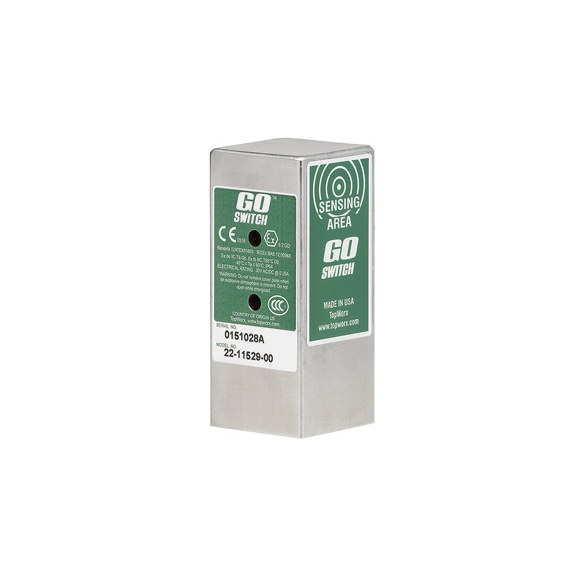

TopWorx™ GO™ スイッチモデル 22

モデル 12 の低プロファイルバージョンであるモデル 22 も、耐炎性および安全性がおびやかされる可能性の高いエリア区分 ATEX/IECExゾーン1、Ex ’de’に小型パッケージで対応しています。

詳細を見る

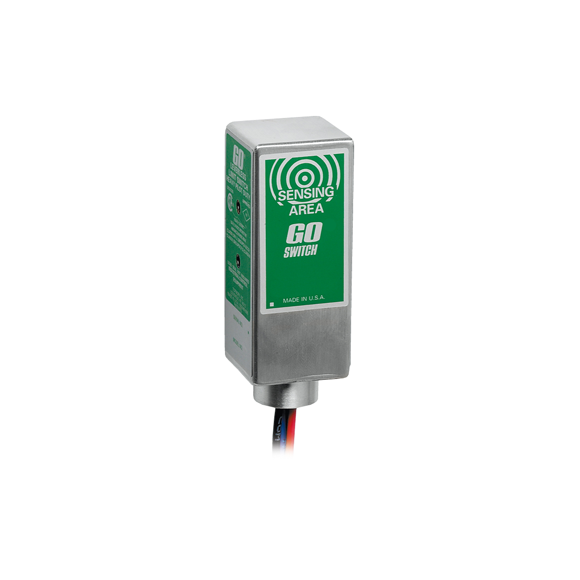

TopWorx™ GO™ スイッチモデル 11

GO™ スイッチモデル 11 は、シールされた金製フラッシュ接点を特徴とし、これは 3/8™ 感知レンジの角型スイッチ設計での非接触感知およびスナップアクション応答です。

詳細を見る

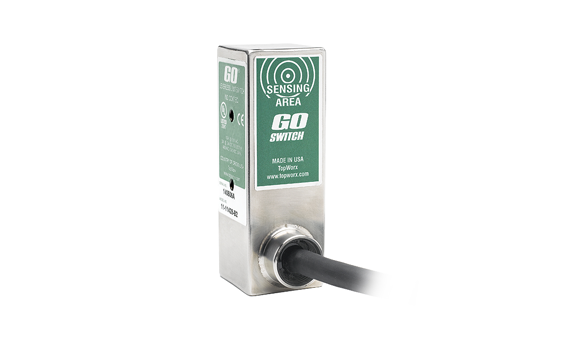

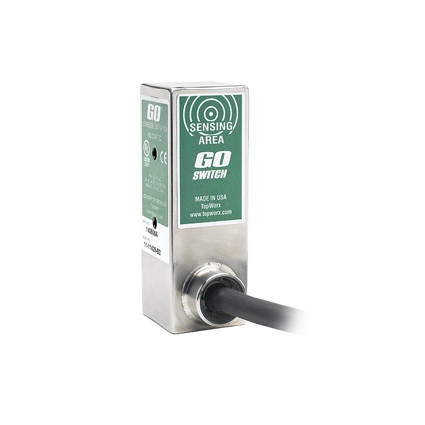

TopWorx™ GO™ スイッチモデル 81

GO™ スイッチモデル 81 では、端部検出とオプションの双極双投(DPDT)型の接点構成(1/4™ 検知範囲、AC、DC、N/O、N/C の選択肢を含む配線オプション付き)が提供されます。

詳細を見る

Frequently Asked Questions about GO Switch

GO Switch provides reliable, durable proximity sensing in the most demanding conditions. Using unique technology, GO Switch outperforms all other types of sensors in applications that require high reliability and durability.

The TopWorx GO Switch is the most versatile sensing solution. It detects like a proximity switch and functions like a limit switch, providing higher reliability when conventional switches fail. The all-in-one proximity sensor and limit switch.
TopWorx GO Switches operate on the principle of magnetic attraction, reacting to ferrous metal or magnetic targets as they come within the switch's sensing range.
  1. Extended Sensing - Sealed contacts, rugged housings, non-contact detection of ferrous metal & magnetic targets, and snap action response make these switches the ultimate problem solvers for troublesome mechanical limit switch applications.
  2. Precision Sensing - With all stainless-steel construction, flexible AC/DC, NO/NC, and SPDT/DPDT contact configurations, superior corrosion resistance, and global certifications for all hazardous areas, 70 Series GO Switches outperform inductive proximity switches in the toughest applications.
TopWorx GO Switches are suitable for use in Flameproof/Explosion Proof, Non-Incendive, Intrinsically Safe hazardous areas with both global and regional certifications available.
TopWorx GO Switches are available in temperature ranges between -50°C to +204°C (-58°F to 399.2°F).
