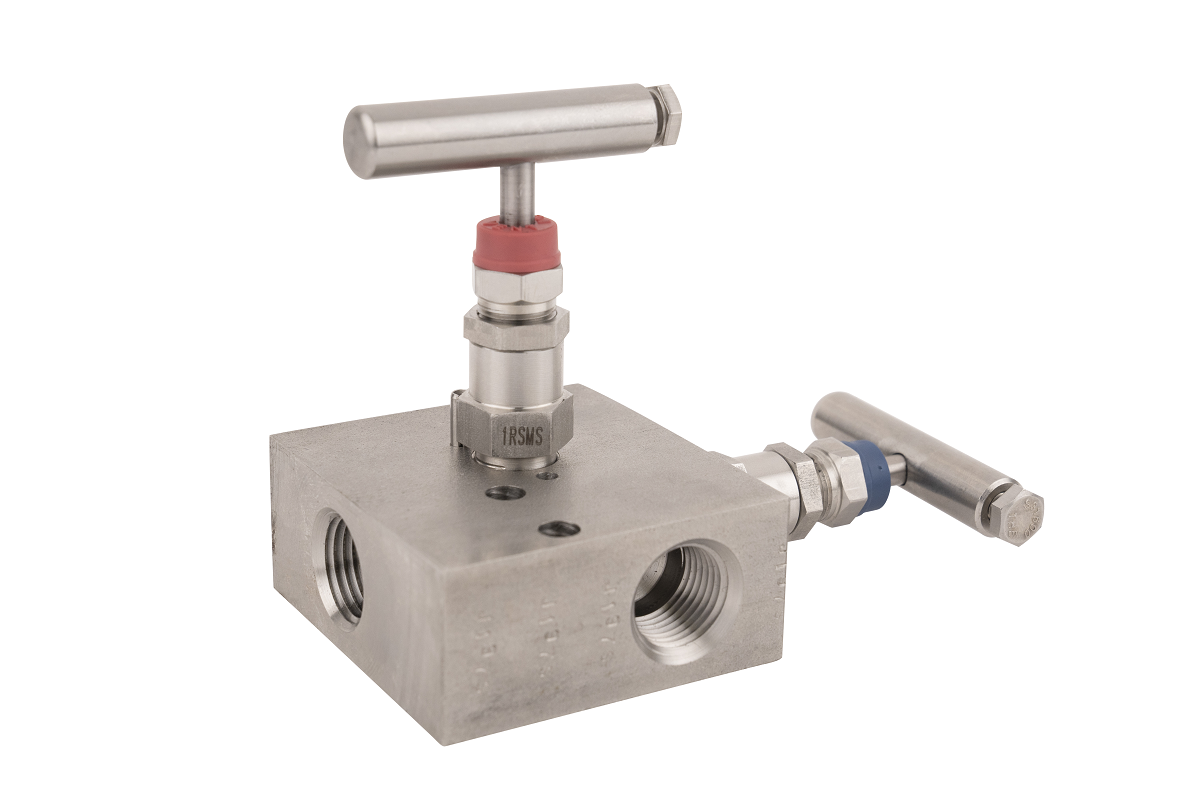

TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7EIC-4
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 850°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7EIS-4
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIC-4
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 850°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIC-4-AM
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| Carbon Steel | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 850°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4-AM
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4-AM-SG
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4-AMS
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4-AMS-SG
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
TESCOM Anderson Greenwood Instrumentation Series PT7 Instrument Manifold PT7HIS-4-PO
| Body Material | Connections | Max Pressure | Maximum Media Temperature | Orifice |
|---|---|---|---|---|
| 316SS | 1/2" FNPT Inlet X 1/2" FNPT Vent X 1/2" FNPT Oulet | 6000 psig | 1000°F | 3/16" |
